Fixture engineering · India

Production fixtures built around the datum.

Purpose-built guides, nests, mounts and production aids scoped from written measurements, trialled once, then controlled by revision.

Explore fixture systems Start a custom brief

Written proof
Two revision rounds
India-wide delivery

Pre-launch concept poster showing precision production fixtures in an industrial studio

Nine controlled starting points

From a single datum to a complete cell.

Every offer is quotation-only. Choose the closest fixture family, then send the part, operation, written dimensions and operating environment.

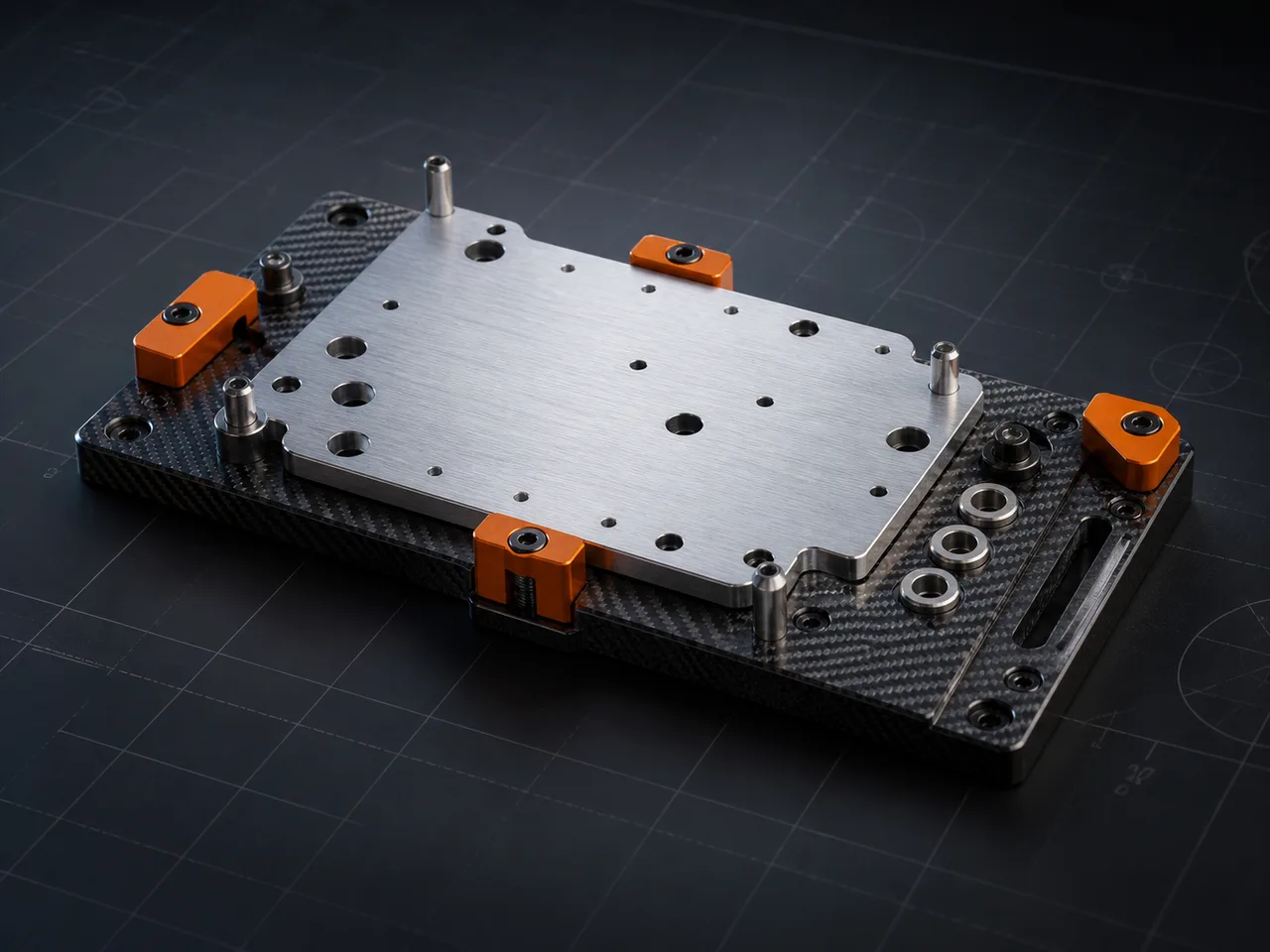

Concept render of a graphite drilling and alignment guide with orange datum stops

Prototype fixture · Datum 01

Drilling, Marking & Alignment Guides

Repeat hole positions, marks and alignments without re-measuring every part.

From ₹4,5007–12 working days after written scope approval

Request a quote

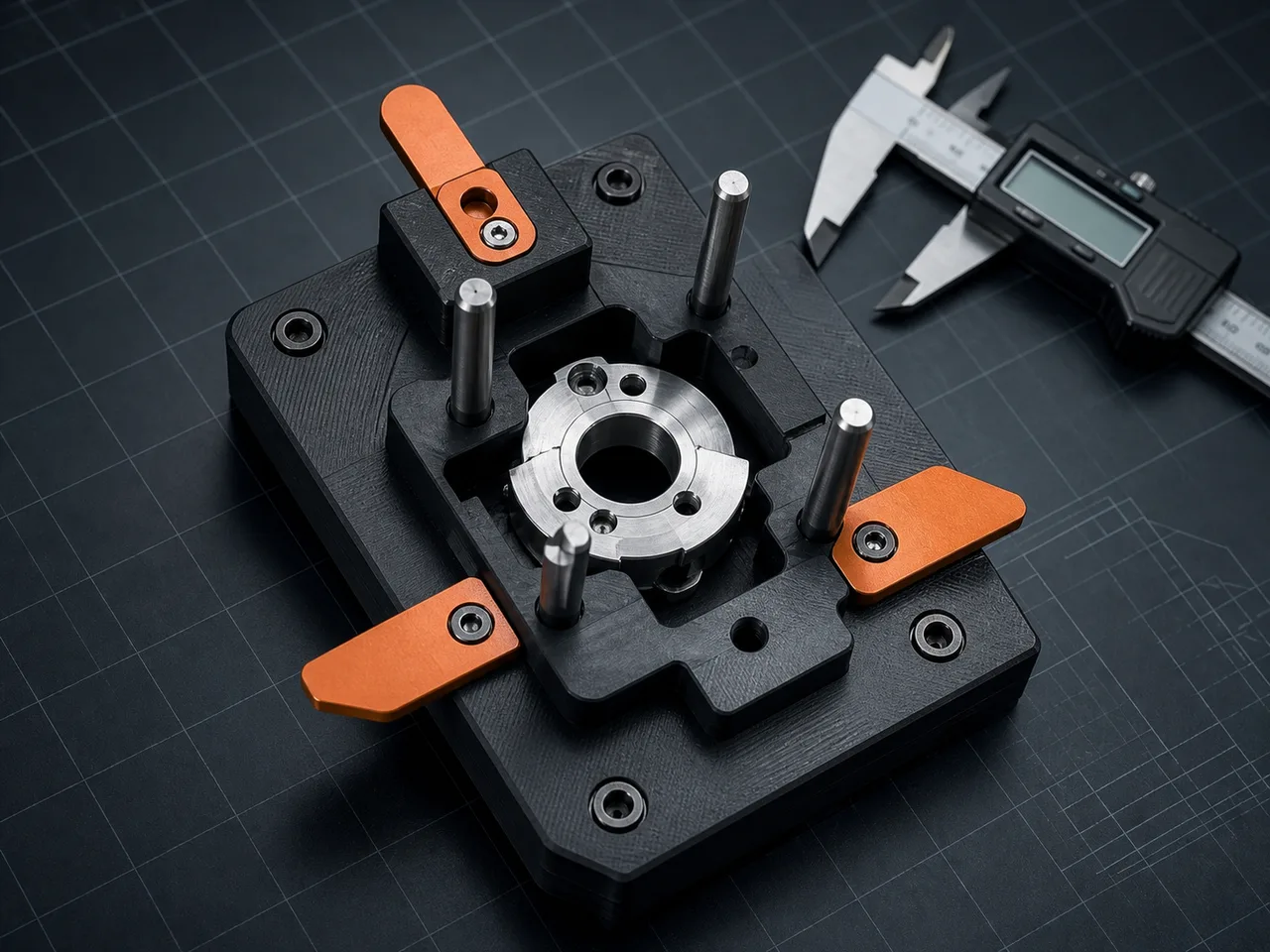

Concept render of a go/no-go inspection nest with steel gauge pins and orange tabs

Prototype fixture · Datum 02

Go/No-Go Gauges & Inspection Nests

Make orientation and key acceptance checks fast, visible and repeatable.

From ₹6,5008–14 working days after written scope approval

Request a quote

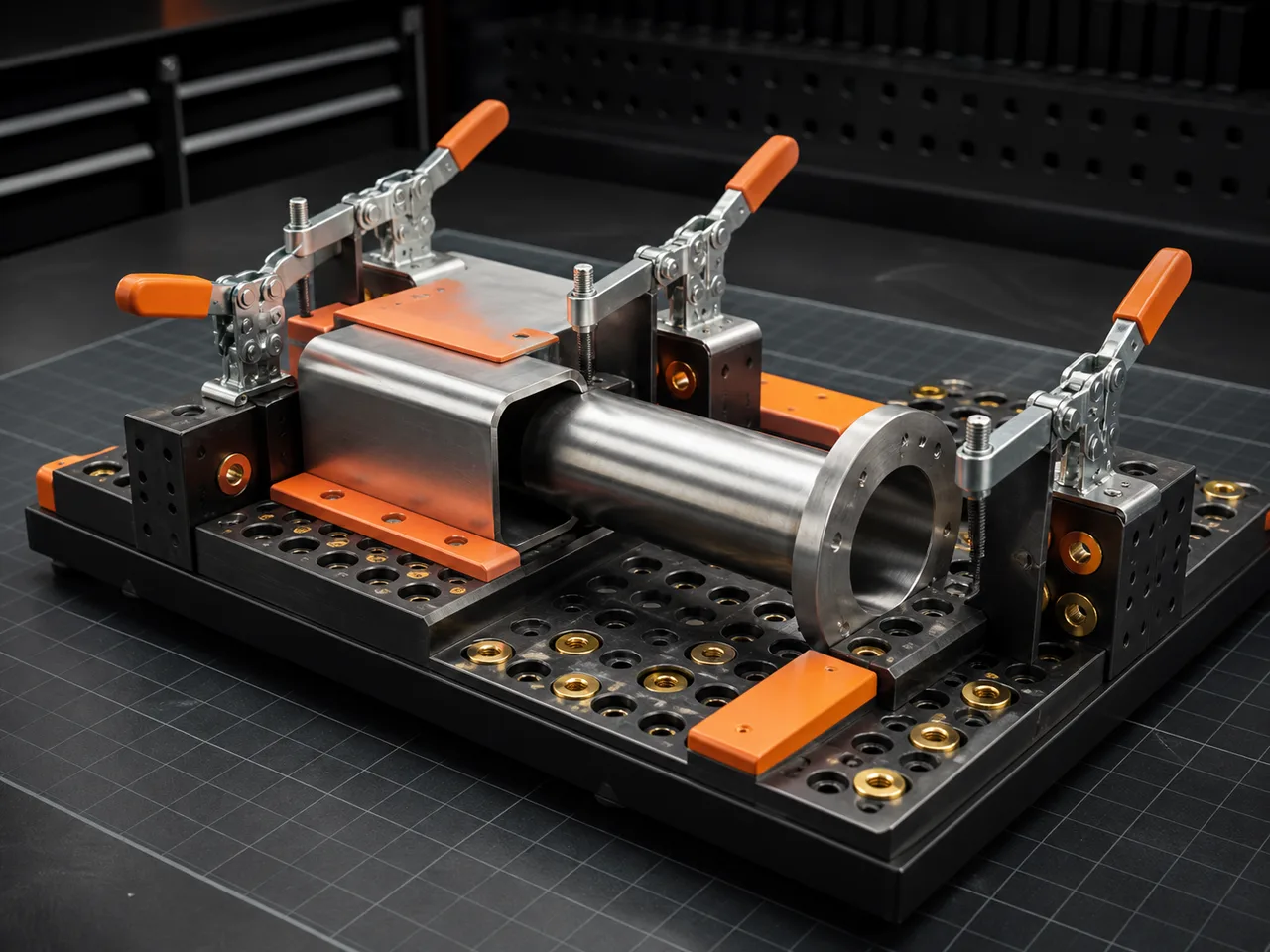

Concept render of a modular adhesive and masking fixture with orange replaceable blocks

Production fixture · Datum 03

Adhesive, Welding & Masking Fixtures

Locate parts, protect surfaces and make repeatable joining or masking easier.

From ₹14,50012–20 working days after prototype approval

Request a quote

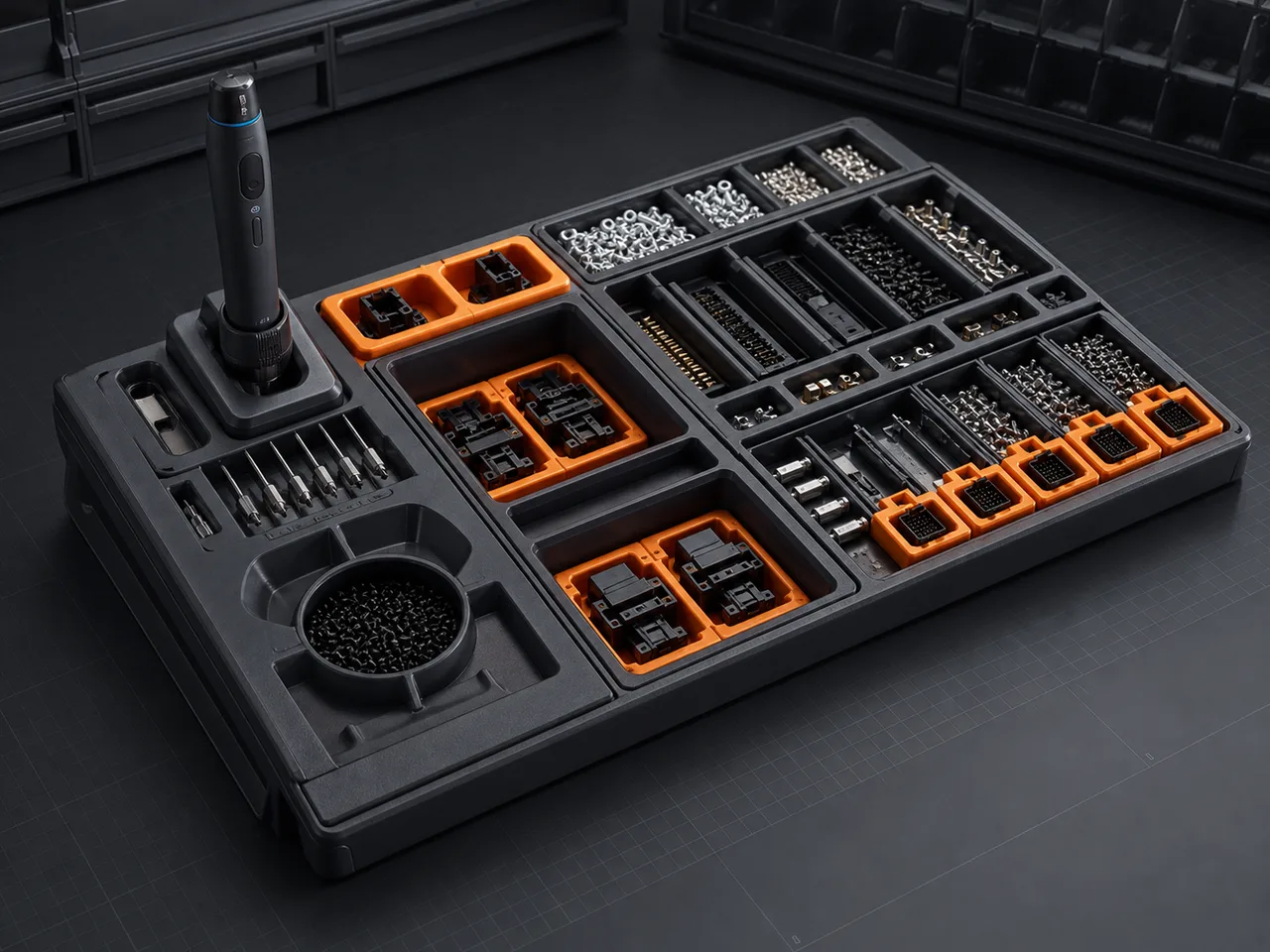

Concept render of a graphite electronics assembly tray with orange error-proofing nests

Production fixture · Datum 04

Electronics & Small-Parts Assembly Trays

Organise parts, enforce sequence and reduce handling errors at the bench.

From ₹9,00010–16 working days after written scope approval

Request a quote

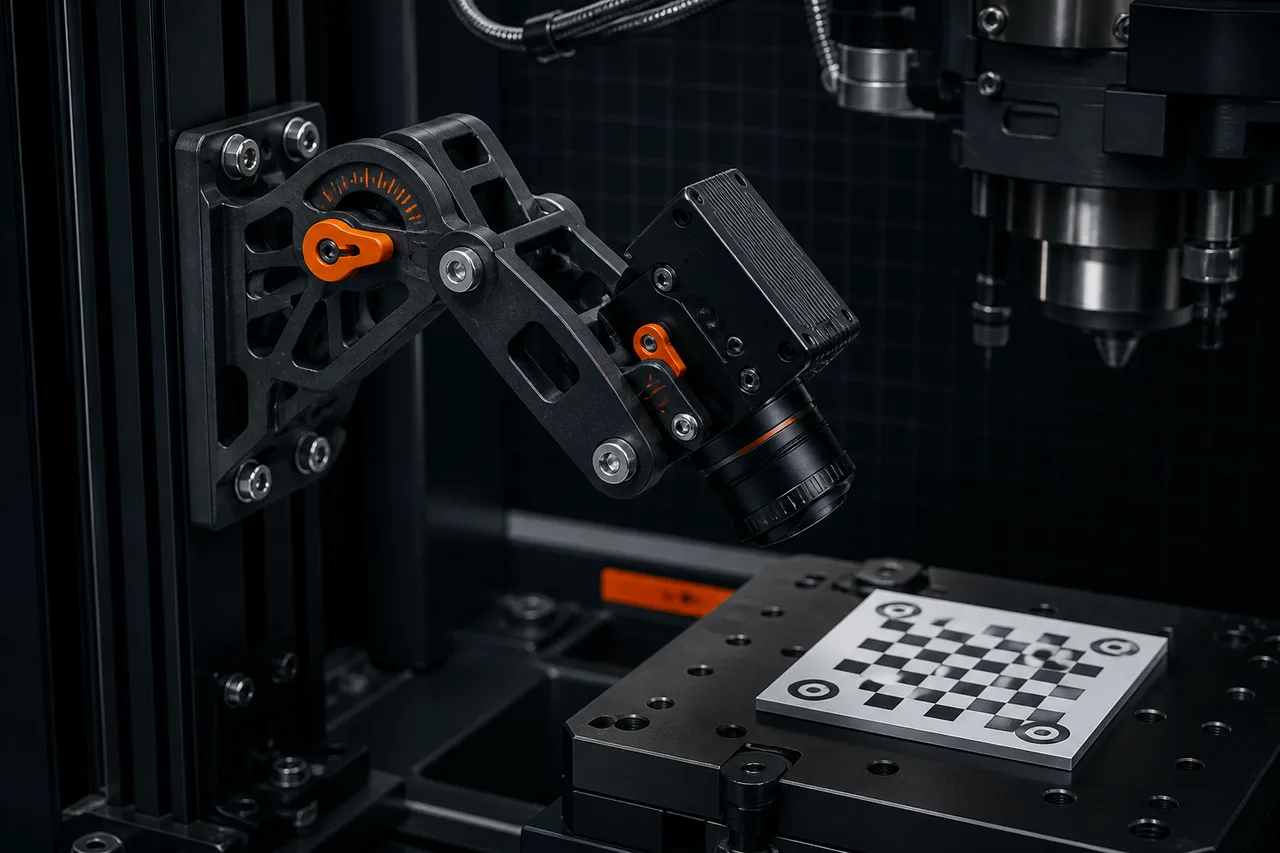

Concept render of a PA-CF machine-vision camera mount with orange adjustment index

Production fixture · Datum 05

Sensor, Camera, Tool & Machine-Interface Mounts

Put sensors and tools on a rigid, serviceable, adjustment-aware interface.

From ₹12,00010–18 working days after written scope approval

Request a quote

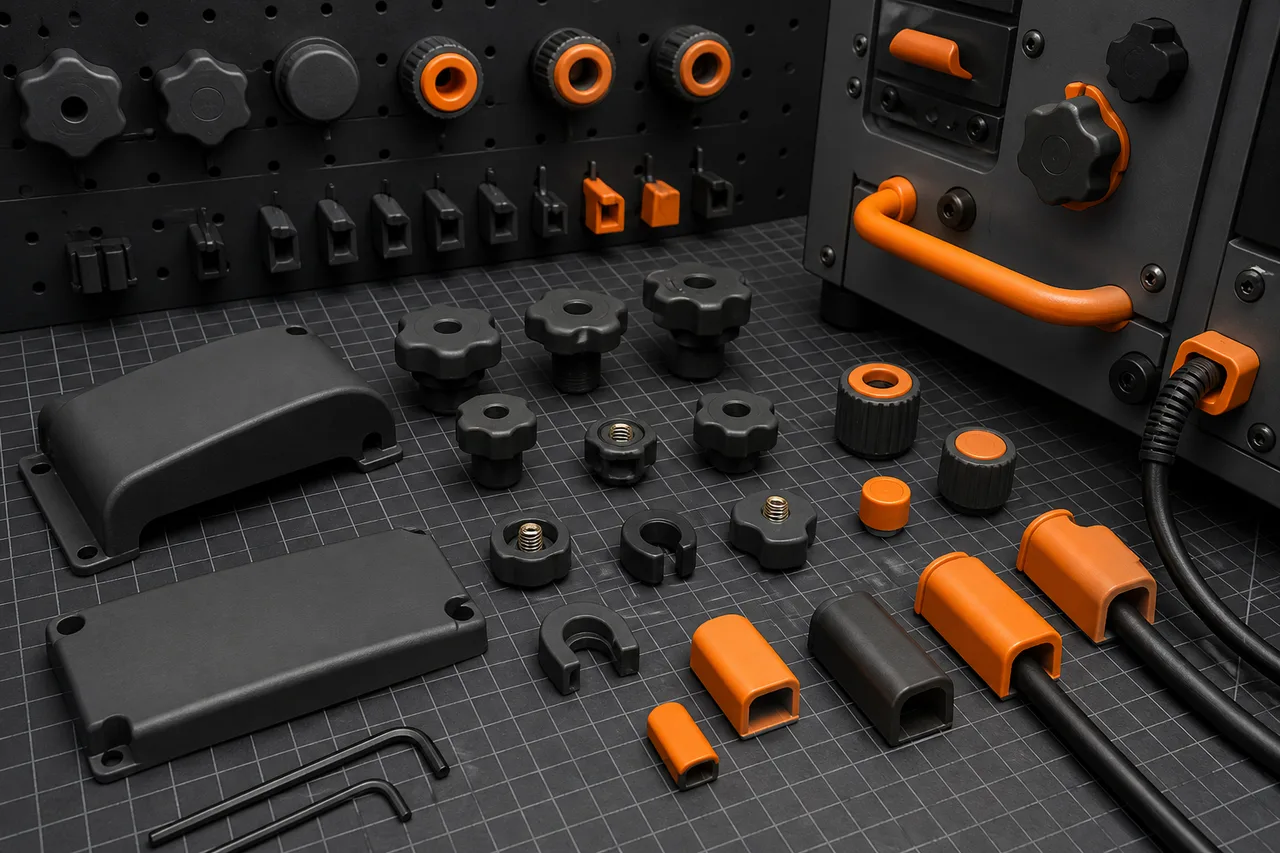

Concept render of replacement industrial knobs covers guides and orange protective caps

Prototype fixture · Datum 06

Replacement Knobs, Covers, Guides & Protective Caps

Restore non-critical machine interfaces when the original small part is unavailable.

From ₹3,0006–10 working days after written scope approval

Request a quote

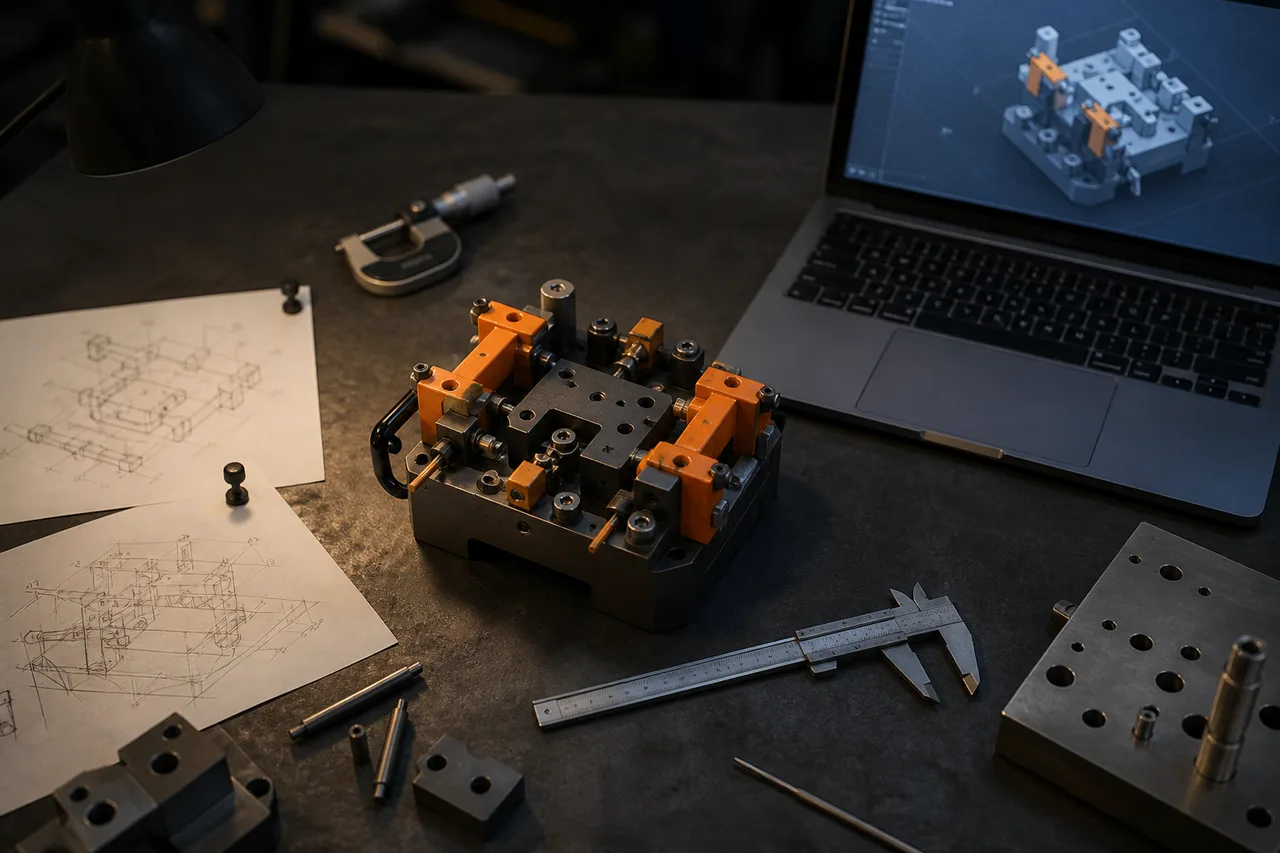

Concept render of a Fixture Sprint prototype beside calipers and CAD work

Prototype service · Datum 07

Fixture Sprint: Discovery + Prototype

A paid, bounded sprint to turn a recurring shop-floor problem into one testable fixture.

From ₹8,0005–10 working days from complete inputs

Request a quote

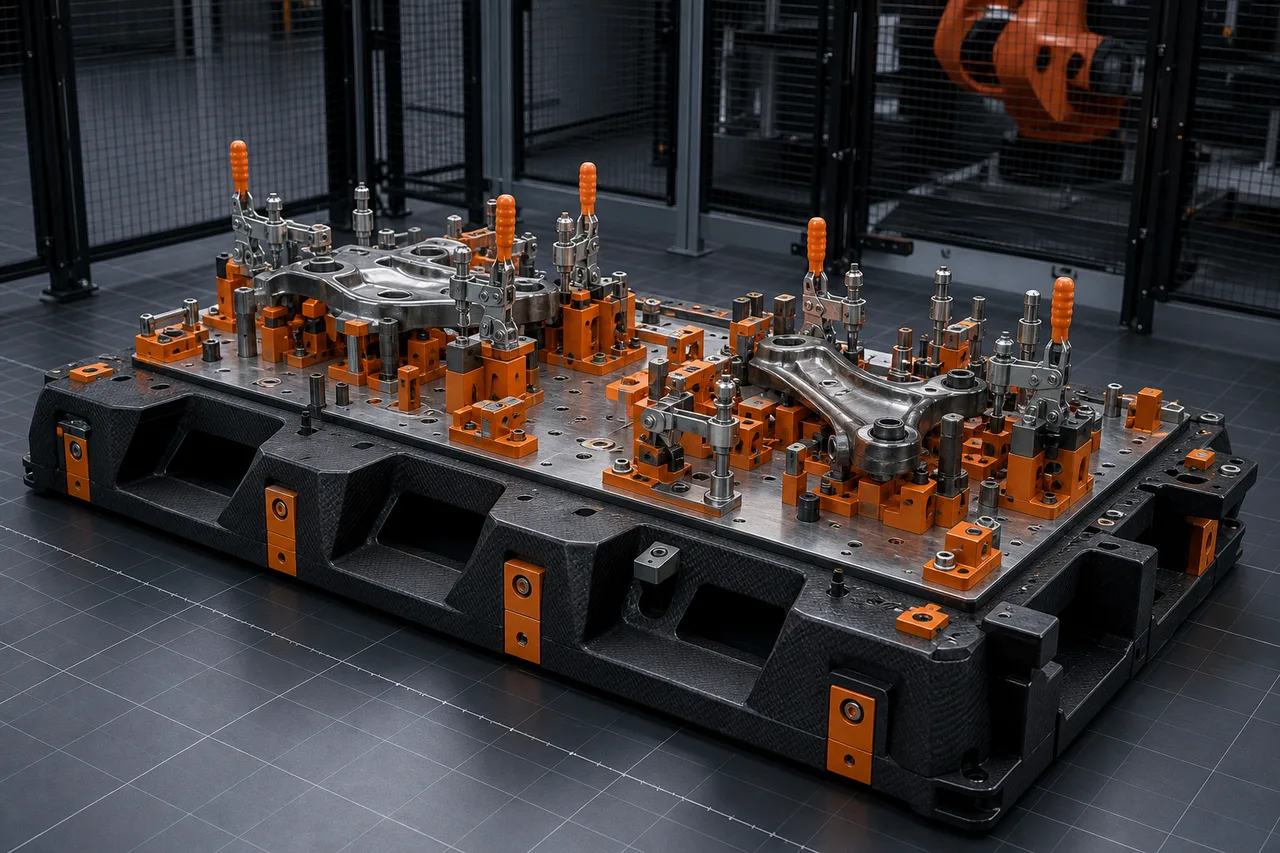

Concept render of a reinforced graphite production-cell fixture system with orange nests

System fixture · Datum 08

Reinforced Production-Cell Fixture System

A reinforced, modular fixture family for a production cell and its changeovers.

From ₹48,0004–8 weeks after prototype and written system approval

Request a quote

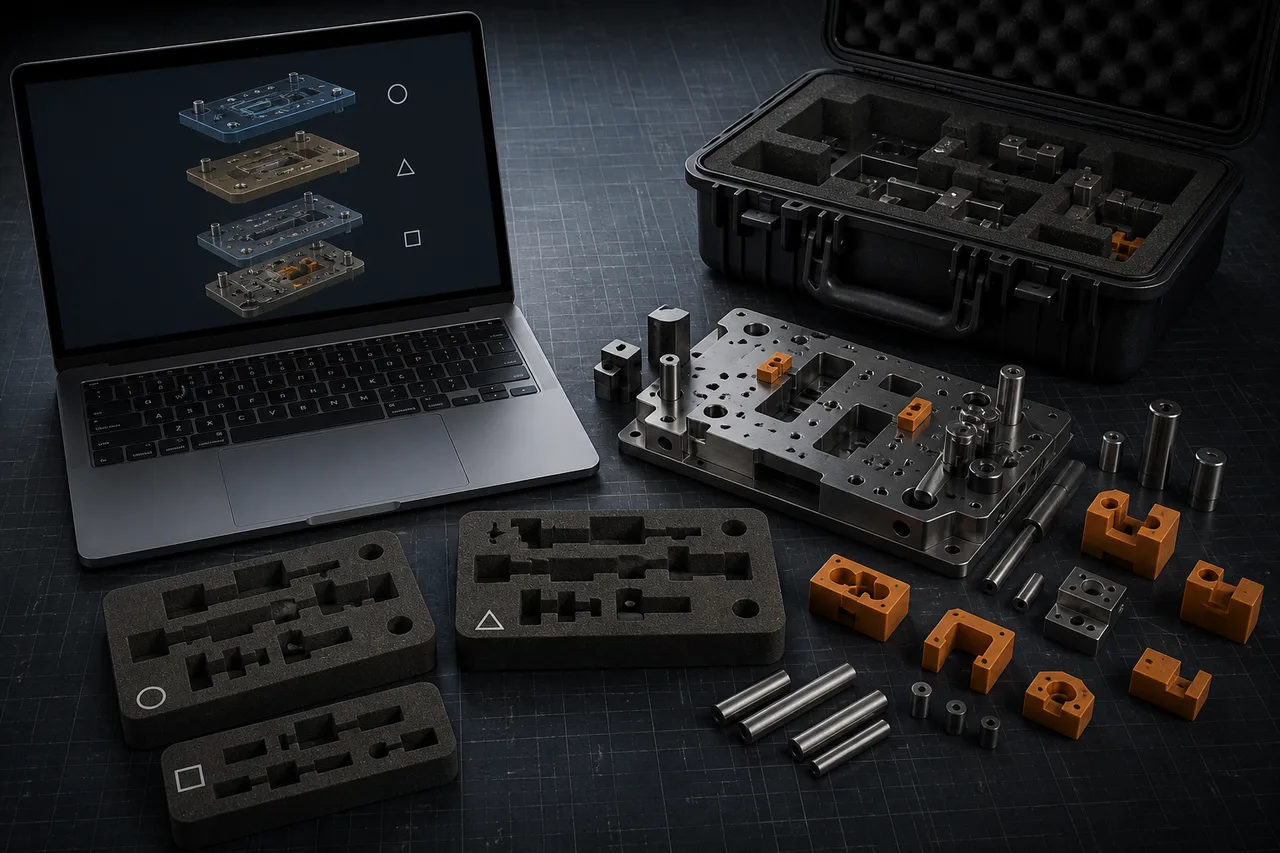

Concept render of revision-controlled fixture spares with orange locators and a digital archive

System service · Datum 09

Digital Spares & Revision-Control Support

Keep approved fixture files, replacement parts and change history tied together.

From ₹25,0002–4 weeks for initial archive and spares plan

Request a quote

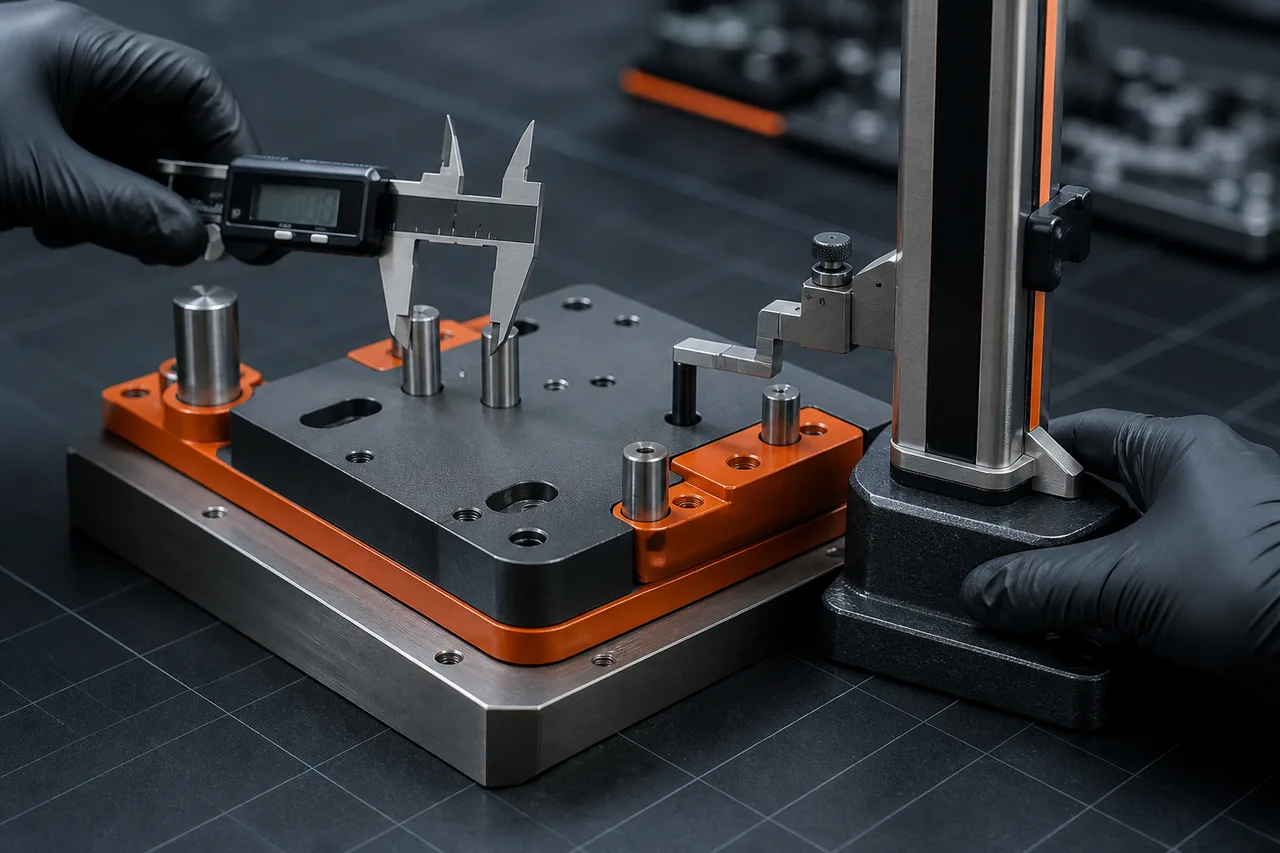

Concept render of a fixture engineer checking datums at a graphite inspection bench

Measure / model / prove

The written datum is the beginning.

We scope from the operation and the contact strategy, not from a vague request to “make a jig.” Your dimensions and tolerance priorities become the approval record.

Read the fixture process

Indicative INR ladder

A band for the risk and reach.

The final written quote responds to geometry, hardware, site access, quantity, environment and validation needs.

01

Prototype

₹3,000–₹8,000

One focused aid or paid discovery/prototype engagement.

02

Production

₹8,000–₹25,000

Reinforced, serviceable fixtures for repeat operations.

03

System

₹25,000–₹1,00,000+

Fixture families, cell interfaces and revision support.

Fixture field notes

Make the brief as disciplined as the build.

Evergreen guidance for measurements, polymer limits and controlled spares.

Field guide · 8 min read

How to brief a fixture: measurements, datums and tolerances

A practical way to turn a recurring operation into a written, quotable fixture brief.

Field guide · 9 min read

Choosing polymers for shop-floor fixtures

Where PETG, ASA, TPU and carbon-filled materials help—and where they do not.

Field guide · 7 min read

Revision control for fixtures and digital spares

A small, practical system for knowing which fixture belongs to which process and part revision.
