Concept work / Not delivered projects

Directions, not performance claims.

Every case and image below is pre-launch concept work. It demonstrates our design approach without claiming a customer, operating result or production history.

Concept render of fixture measurement and datum inspection on a graphite workbench

Concept case / datum-first-drill-guide

Datum-first drill guide

Challenge

Concept work for reducing re-measurement across a family of plate-like parts with known edge variation.

Approach

Locate from a written primary face and stable edge, then place replaceable metal bushings at the approved hole pattern.

Concept outcome

Concept outcome: a trial-ready guide architecture with inspectable wear points; no production result is claimed.

Concept work · final design follows written measurements and approval

Concept render of a gloved technician trialling an orange and graphite assembly nest

Concept case / connector-kitting-nest

Connector kitting nest

Challenge

Concept work for an assembly sequence where similar connectors could be selected or oriented incorrectly.

Approach

Use keyed pockets, distinct orange locator cues and separated fastener zones while preserving tool reach.

Concept outcome

Concept outcome: an error-proofing direction ready for customer trial and written approval; no operating result is claimed.

Concept work · final design follows written measurements and approval

Concept render of an exploded production-cell fixture family with orange modular nests

Concept case / modular-cell-family

Modular cell fixture family

Challenge

Concept work for multiple part variants sharing a production cell without uncontrolled local modifications.

Approach

Keep a stable subplate interface and issue each replaceable nest against a distinct revision ID and hardware list.

Concept outcome

Concept outcome: a controlled family architecture for review; throughput, lifetime and quality gains remain to be validated.

Concept work · final design follows written measurements and approval

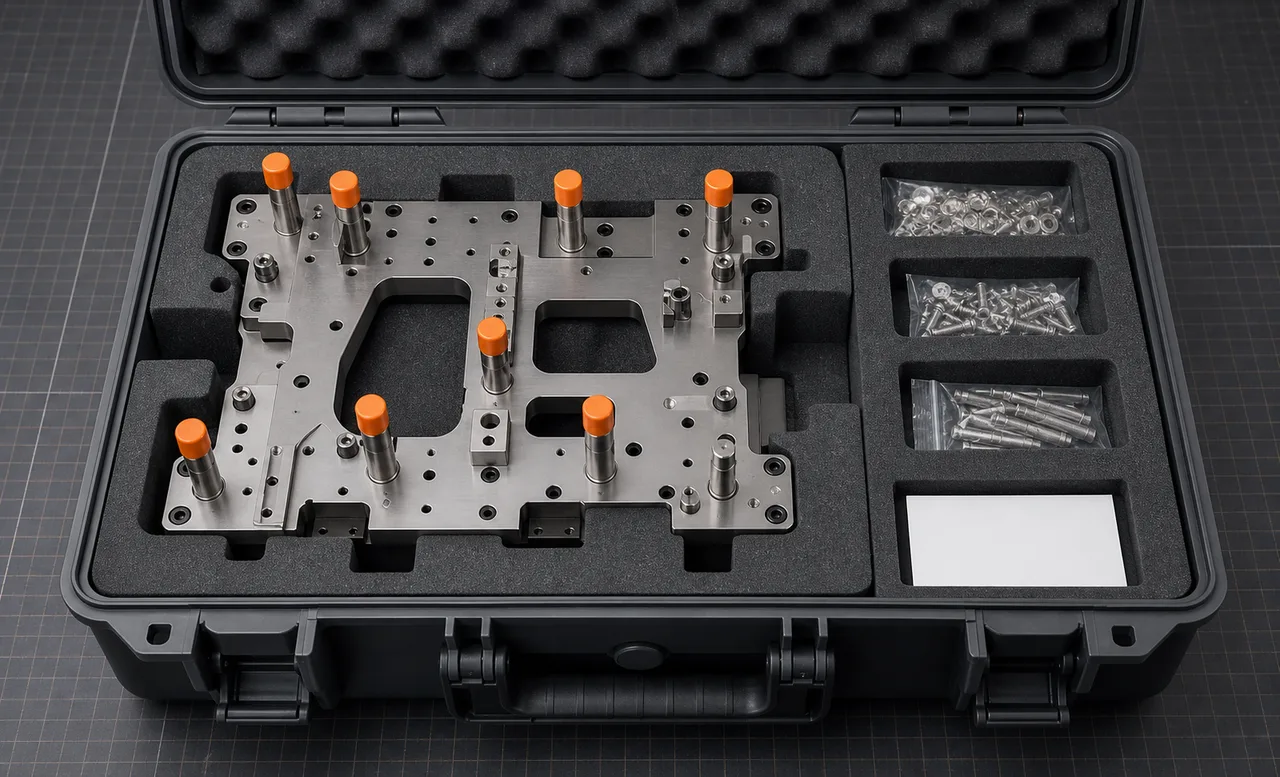

Concept render of a graphite fixture packed with orange protective caps and revision compartments

Concept case / protective-packaging

Protected fixture dispatch

Challenge

Concept work for shipping locating pins, change parts and printed bodies without contact damage or revision confusion.

Approach

Separate hardware, cap critical pins and tie each compartment to a simple revision manifest and inspection checklist.

Concept outcome

Concept outcome: a packaging direction for quote review; final packaging depends on mass, destination and handling risk.

Concept work · final design follows written measurements and approval

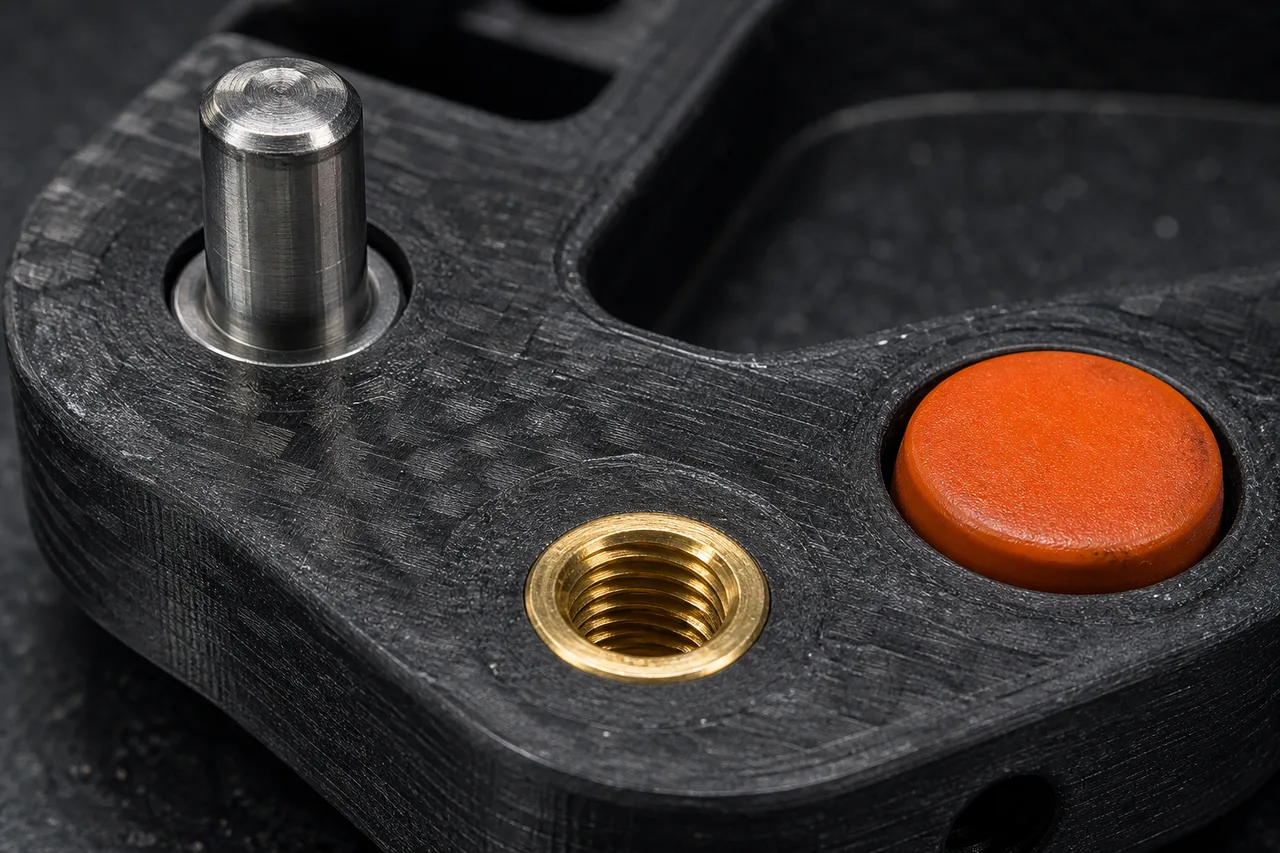

Concept render close-up of steel locator pins inserts and orange compliant fixture pads

Concept case / inspection-detail

Replaceable inspection contact

Challenge

Concept work for a nest expected to see repeated loading at a small number of critical contact points.

Approach

Move wear into replaceable pins and compliant pads, then make the inspection condition visible at shift start.

Concept outcome

Concept outcome: a serviceable contact strategy; real wear intervals require monitored production trials.

Concept work · final design follows written measurements and approval
